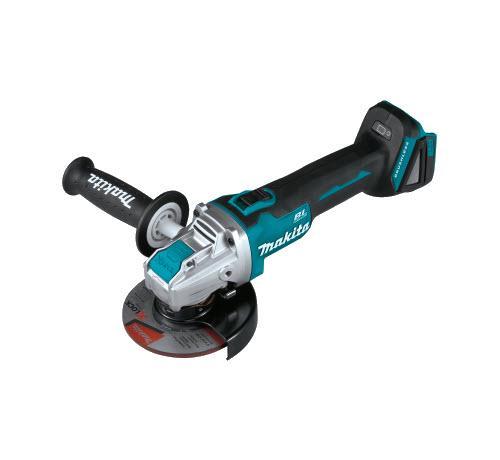

Makita delivers grinding performance with the 18V LXT® Brushless 4-1/2” / 5” Paddle Switch X-LOCK Angle Grinder with AFT®, tool only (XAG26Z). The unique feature with this angle grinder is the X-LOCK Technology, which is a quick-change system for tool-free wheel changes. A click-mount and pull release lever make changing wheels easy. The XAG26Z is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more.
It's powered by a Makita-built brushless motor for longer run time, increased power and speed, and longer tool life. The BL™ Brushless Motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. Active Feedback-sensing Technology (AFT®) turns the motor off if rotation speed suddenly slows or the wheel is forced to a stop.
The XAG26Z also includes a large no lock-on flush-mount paddle switch with two-stage lock-off. In the event that a battery is installed while pulling the paddle switch into the ON position, the anti-restart function prevents the grinder from starting.
It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
Features
- X-LOCK quick change system allows for tool-free wheel changes with simple snap-on mounting and pull release lever for change-out
- The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life; delivers 8,500 RPM
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
- Electric Brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
- Automatic Speed Change™ technology adjusts speed and torque during operation for optimum performance
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Anti-restart protection engineered to prevent motor start up when battery is inserted with switch in the on position
- No lock-on power switch; Features a two stage power lock-off switch to start the grinder
- Quick guard rotation allows easy tool-less adjustment for increased productivity
- Rubberized soft grip provides increased comfort on the job
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Wire mesh intake covers are engineered to prevent debris from entering motor
- 3-Stage L.E.D. gauge indicates battery charge level
- Weighs only 6 lbs. with battery (battery not included) for reduced operator fatigue
- Compact and ergonomic design at only 14-3/4" long
- The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
- Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
- Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- Battery and charger sold separately
- Only use genuine Makita batteries and chargers
- Only Compatible with X-LOCK Accessories
Specifications
- Wheel Diameter: 5"
- Battery: 18V LXT® Lithium-Ion
- No Load Speed: 8,500 RPM
- Spindle Type: X-LOCK
- Lock-On Switch: No
- Lock-Off Switch: Yes
- Switch Type: Body grip/paddle
- Electric Brake: Yes
- Variable speed dial: No
- Overall Length: 14-3/4"
- Net Weight (with battery): 5.99 lbs.
- Power Type: Cordless
- Bind-Up Control: Yes
- Form Factor (LXT): 18V LXT®
- Motor Type: Brushless
Includes
- (1) Side Handle (158237-4)
- (1) X-LOCK 5" x 1/4" x 7/8" Metal & Stainless Grinding Wheel, 36 Grit (E-00468)
- (1) X-LOCK 5" x .045" x 7/8" Metal & Stainless Thin Cut-Off Wheel, 60 Grit (E-00474)
- (1) 5" Tool-Less Wheel Guard (140T26-1)
- (1) 5" Cut-Off Wheel Guard (140U29-1)
